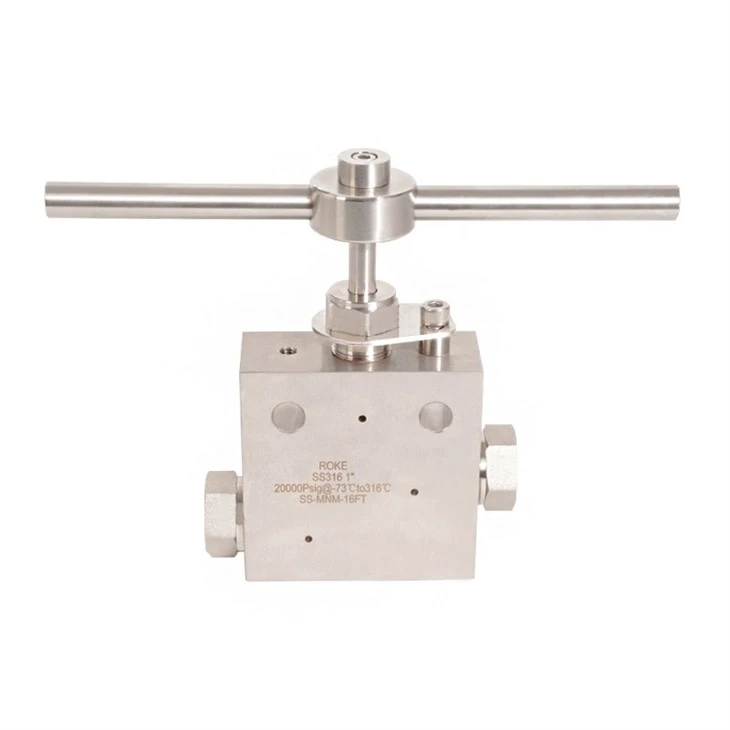

שסתומי מחט בלחץ בינוני

יָשָׁר

חֵלֶק

לֹא.

שְׁפוֹפֶרֶת

גוֹדֶל

פֶּתַח

אינ.(מ"מ)

מימד ב.(מ"מ)

A

B

C

D

D1

E

F

G

G1

H

M

N

ThK

-MNM-4FT

1/4

0.125

(3.2)

2.00

(50.8)

1.00

(25.4)

1.62

(41.2)

1.62

(41.2)

1.19

(30.2)

2.00

(50.8)

3.00

(76.2)

0.75

(19.1)

0.22

(5.6)

4.85

(123)

0.62

(15.8)

0.38

(9.7)

0.75

(19.1)

-MNM-6FT

3/8

0.204

(5.2)

2.00

(50.8)

1.00

(25.4)

0.44

(11.2)

1.62

(41.2)

1.19

(30.2)

2.00

(50.8)

3.00

(76.2)

0.750

(19.1)

0.22

(5.6)

4.89

(124)

0.62

(15.8)

0.38

(9.7)

0.750

(19.1)

-MNM-9FT

9/16

0.312

(7.9)

2.50

(63.5)

1.25

(31.8)

0.55

(14.0)

2.37

(60.3)

1.75

(44.5)

2.88

(73.2)

4.00

(102)

1.00

(25.4)

0.34

(8.6)

6.18

(157)

0.69

(17.5)

0.50

(12.7)

1.00

(25.4)

-MNM-12FT

3/4

0.438

(11.1)

3.00

(76.2)

1.50

(38.1)

1.60

(15.2)

3.00

(76.2)

2.25

(57.2)

3.75

(95.3)

10.25

(260)

1.19

(30.2)

0.44

(11.2)

7.37

(187)

0.88

(22.4)

0.63

(16.0)

1.38

(35.1)

-MNM-16FT

1

0.562

(14.3)

4.13

(105)

2.06

(52.3)

0.74

(18.7)

3.75

(95.3)

2.81

(71.4)

4.64

(118)

10.25

(260)

1.62

(41.2)

0.56

(14.2)

9.45

(240)

1.25

(31.8)

1.13

(28.7)

1.75

(44.5)
